SF6 gas-insulated switchgear (GIS) 12-24-36 kV / 630-1250A

The isolating main circuit contacts are housed in an epoxy resin casting where 1.5 bar SF6 gas is filled and gas-tightness is guaranteed for the IlfetIme.

The main circuit contacts can only be In one of two positions, "Open" or "Closed'. The grounding switch is located outside the epoxy housing and its position can be directly and safely monitored by the user.

There is a mechanical interlocking system between the grounding switch and the main circuit contacts to ensure safe operation. The reliability of the gas-filled epoxy housing against explosion is ensured by a safety membrane located on its rear sade.

There are auxiliary contact options available to indicate the positions of the main circuit contacts and grounding switch. Various mechanical locking system options with key can be selected for different purposes.

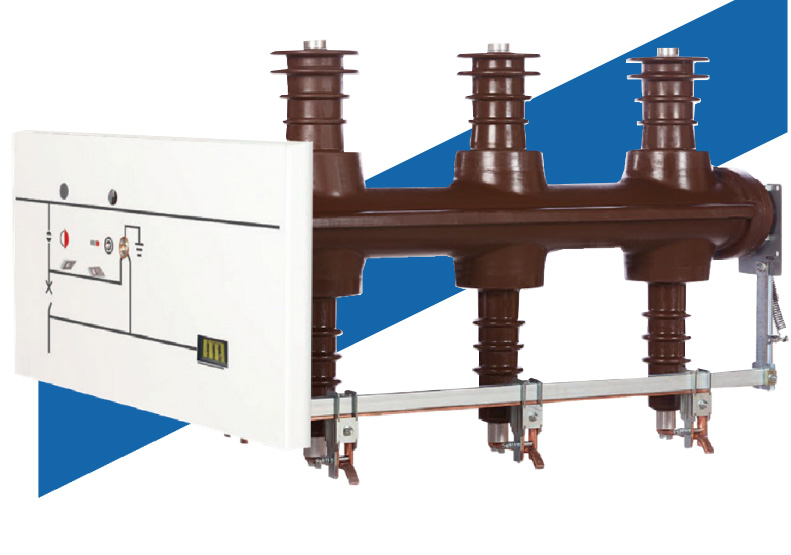

5F6 gas-insulated load break switch 12-24-36 kV / 630A

Load disconnectors provide "switching - isolating" features. The isolating main circuit contacts are housed in an epoxy resin casting where 1.5 bar SF6 gas is filled and gas-tightness is guaranteed for the lifetime.

The main circuit contacts can only be in one of two positions, "Operior "Closed".The grounding switch is located outside the epoxy housing and its position can be directly and safely monitored by the user. There is a mechanical interlocking system between the grounding switch and the main circuit contacts to ensure safe operation. The rellabliity of the gas-filled epoxy housing against explosion is ensured by a safety membrane located on its rear side.

There are auxiliary contact options available to indicate the positions of the main circuit contacts and grounding switch. The operating mechanism can be manualb, operated using a lever or optionally with a motor. The installed mechanism has accumulated energy for closing and opening operations. The operations can be carried out with close-range buttons or remotely with coils. An opening system with a protective fuse-blowing pin can be applied for protection purposes. Various mechanical locking system options with key can be selected for different purposes.

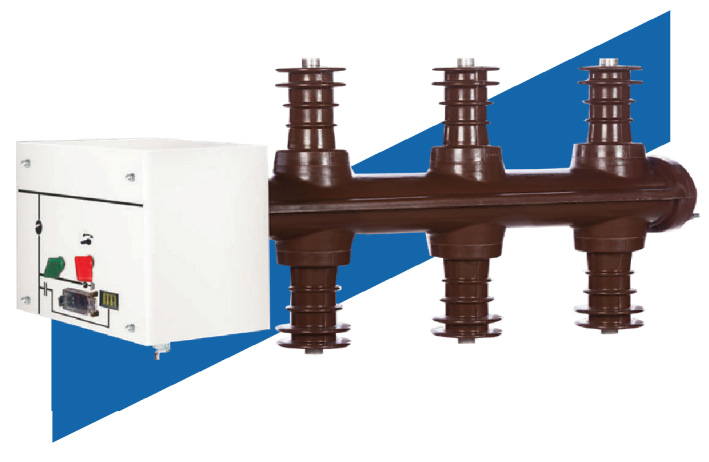

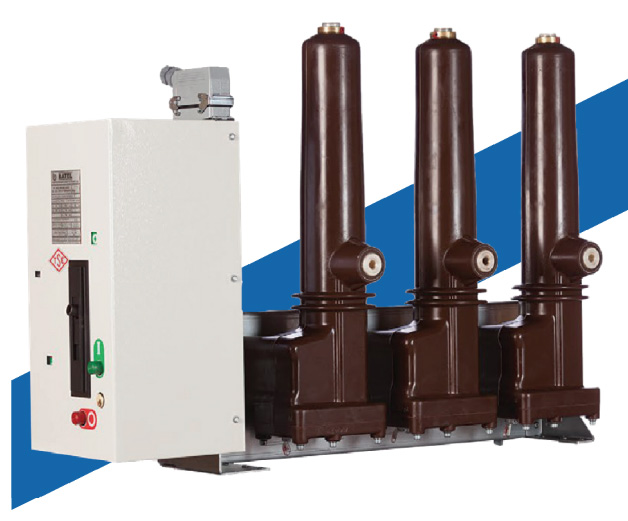

SF6 gas-insulated circuit breaker 12-24-36 kV

SF6 gas circuit breakers provide high levels of safety and reliability due to the 5F6 gas arc interruption technique used and the 35 years of experience in producing medium and high voltage switchgear by BATEL.

With these features, BGK type circuit breakers guarantee continuity and reliability of energy in electricity distribution systems. Asa result of all these features, they offer longer operating life and require less maintenance. The epoxy-insulated three-pole housing is filled with SF6 gas and its sealing is guaranteed for life.

The reliability of the gas-filled pole epoxy housings against explosion is ensured by the safety membrane located on the bottom cover. The operating mechanism can be installed manualb,r with a lever or with a motor. The installed mechanism has accumulated energy for opening and closing operations.

Opening and closing operations can be performed using close-up buttons or remote coils. BGK type circuit breakers have front and side mechanical options. Auxiliary contact options for OPEN and CLOSE positions can be selected optionally as 4NA + 4NK or 6NA + 6NK.

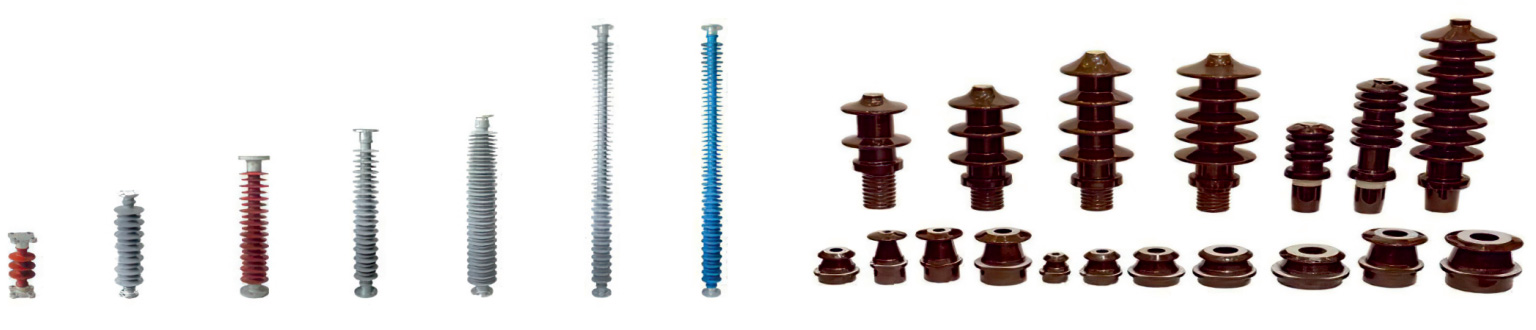

Porcelain, Silicone, Epoxy and Glass Insulator Groups

We offer the best solutions to both domestic and international customers with our stock of all kinds of insulators.

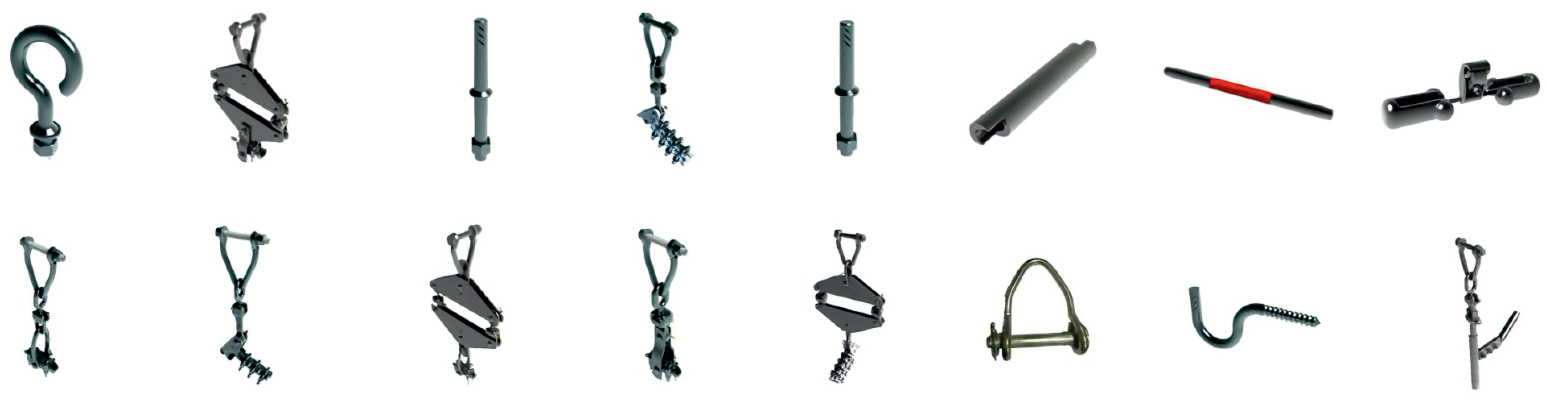

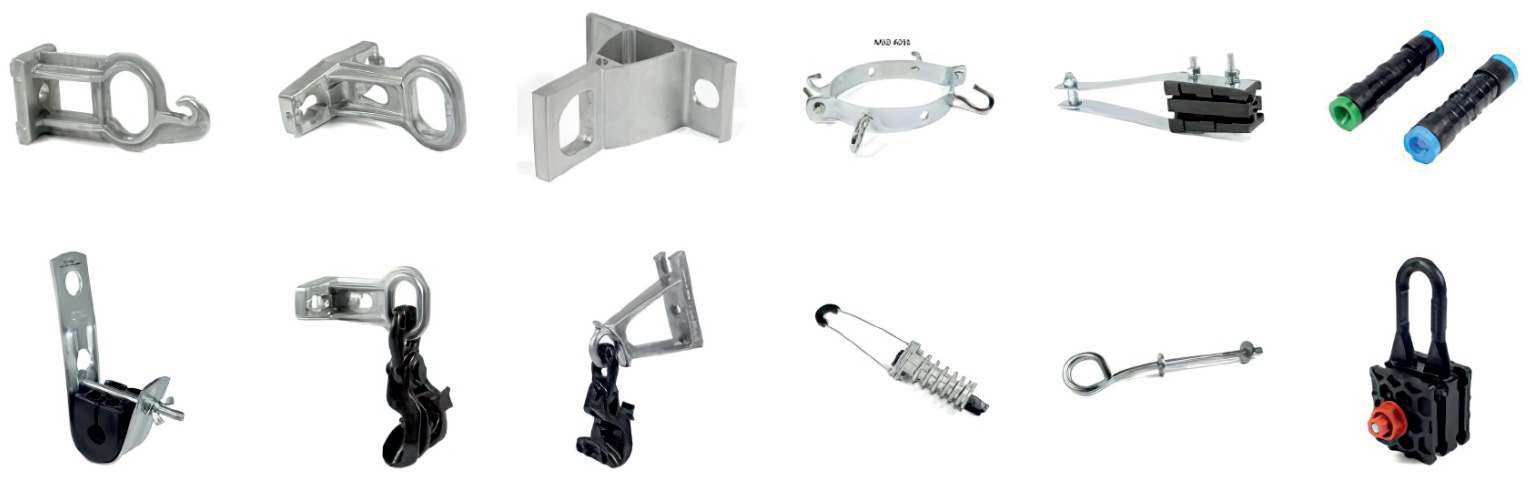

Insulators and Overhead Line Hardware

New AG Overhead Line Hardware

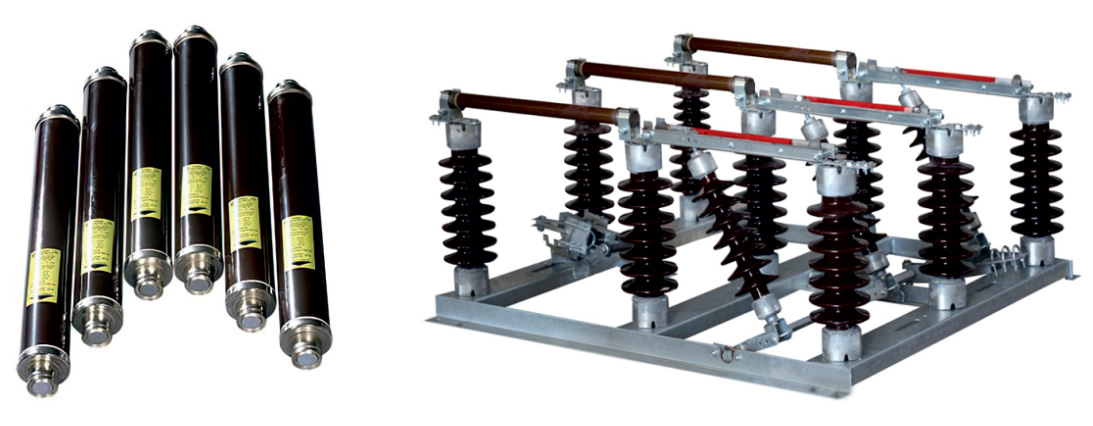

Our Product Groups for OF Fuse and OG Disconnector

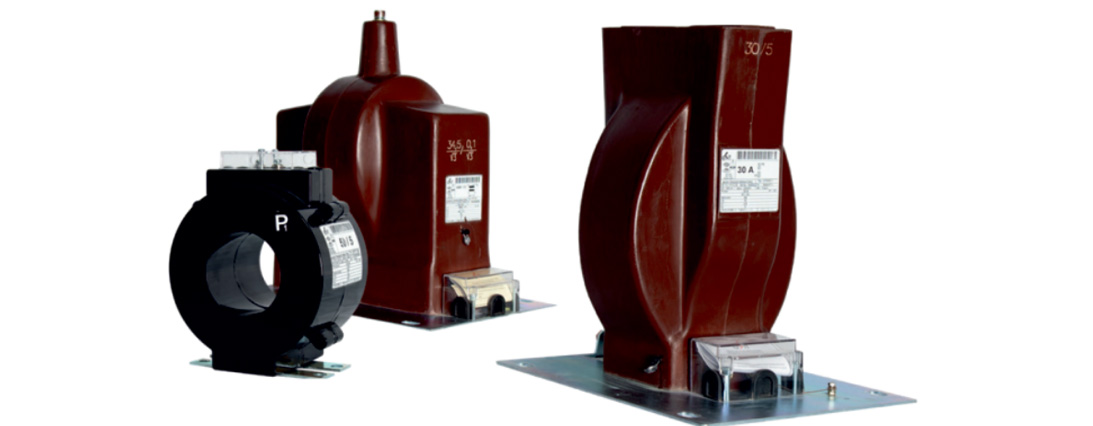

OG Current and Voltage Transformers

Current transformers and voltage transformers

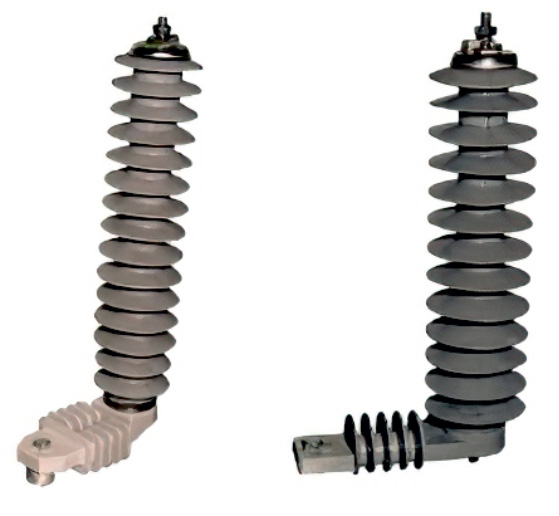

OG Surge Arresters

You can contact us for porcelain options.

Parafudrs provide users with all the necessary conveniences in terms of transportation and assembly due to their lightweight and long creepage distance thanks to their special skirt shape, which is superior to porcelain-housed surge arresters.

Surge arresters composed of special ly designed varistors and a polymer housing made of sil icone exhibit superior electrical and physical characteristics that will perform well under all conditions.

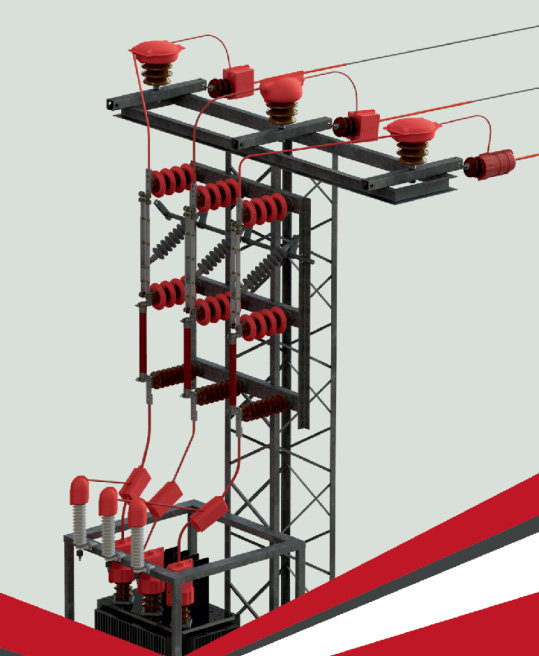

Insulation Closures

Our Insulation closures protect against contacts with various wild animals, including birds and other fiying animals. Additionally, these insulations prevent power interruptions caused by tree branches in wooded areas. We ensure full safety by insulating the isolators.

  • Our products are halogen-free.
  • Products are hornogeneous, and all parts have the same thickness (No thinning occurs at edges or other areas, providing the best possible insulation.)
  • Hydrophobic surface. Repels water.
  • Long lifespan guaranteed. Resistant to UV rays.
  • Long-lasting mechanIcal strength.
  • Excellent electrical insulation.
  • VO flame-retardant property.
  • Long shelf life.
  • Easy and practical to apply. Our featured products are:
  • MV Bushing Insulation Closure - 250A
  • MV Bushing Insulation Closure - 630A - MV Bushing Insulation Closure -1000A
  • MV Bushing Insulation Closure - 2000A
  • HV Bushing Insulation Closure
  • VHD Pin Type Medium Voltage Insulation Closure
  • i-IV Pipe Type Conductor Closure
  • HV Claw Type Conductor Closure
  • Surge Arrester Closure
  • KI, K2 Tension Closure

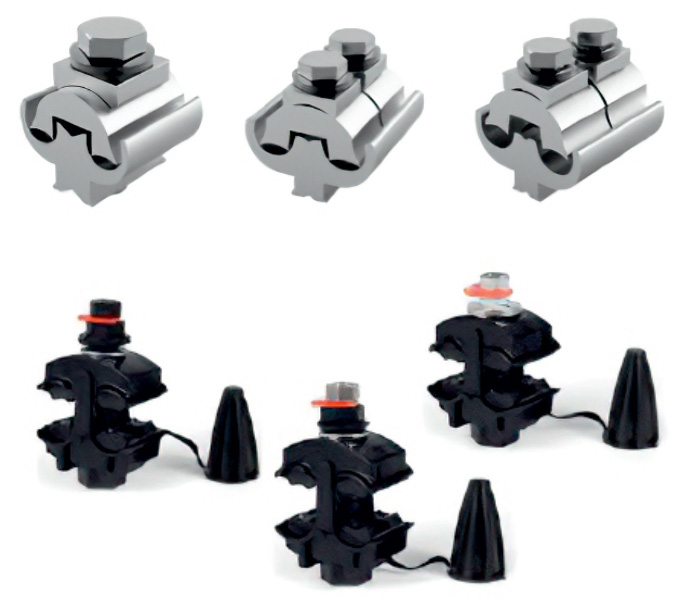

Bare and Fully Unsulated Terminals

We contribute to the improvement of distribution lines with our aluminum and aluminum-copper terminals for overhead power lines


Fully insulated terminals are designed to connect insulated aluminum and copper wires while the line is active. They are completely insulated and prevent natural corrosion. Both Line 1 and Line 2 can be pierced with a single bolt. Fully insulated terminals are long-lasting and practical

We are leading the industry with both bare and insulated terminals.

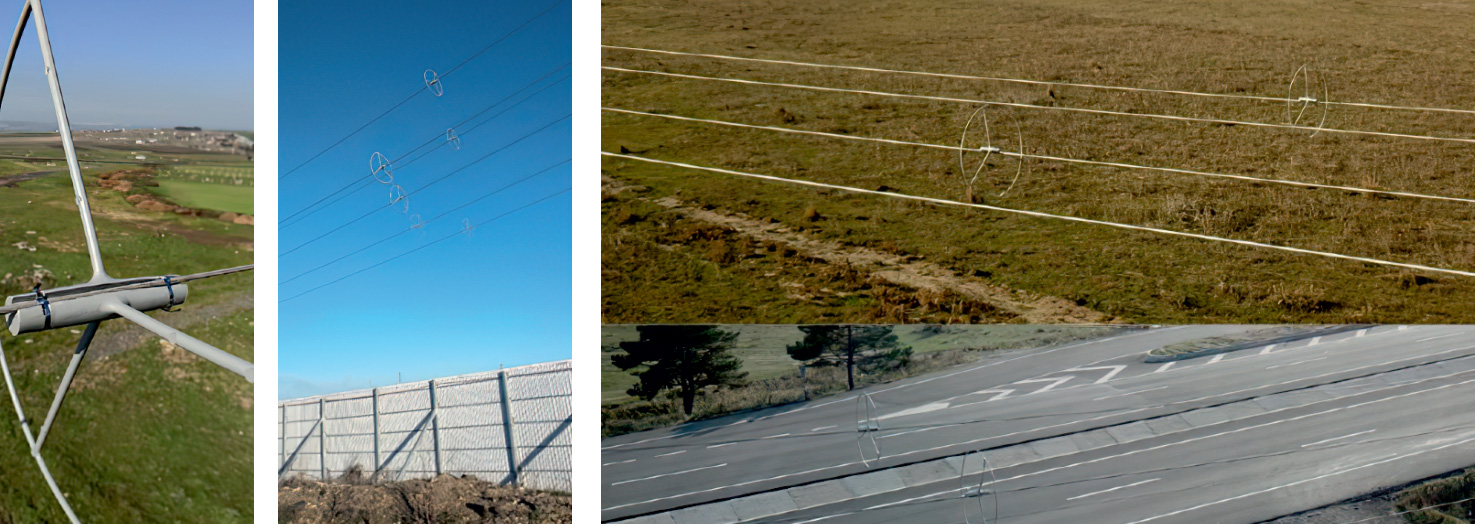

Insulation Rings

Prevent voltage surges and short circuits in energy transmission lines with our new insulation rings

Isolation clamps used in overhead power lines prevent contact between conductors, making the line sefer.

Electrical arcing occurs when conductors get too close to each other, which can happen due to adverse weather conditions or external events.

Cable Lugs and Joint Sleeves Cable Clamps

We provide our customers with standard, economical, and DIN standard cable lugs, joint sleeves, and bi-metal options.
Our bi-metal cable lugs and mechanical connector lugs quickly gained their place in the market

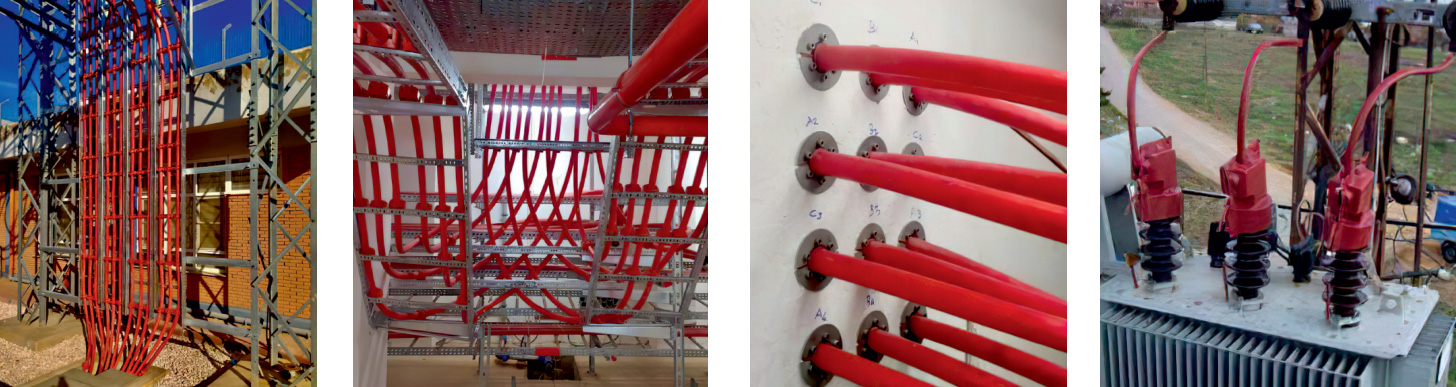

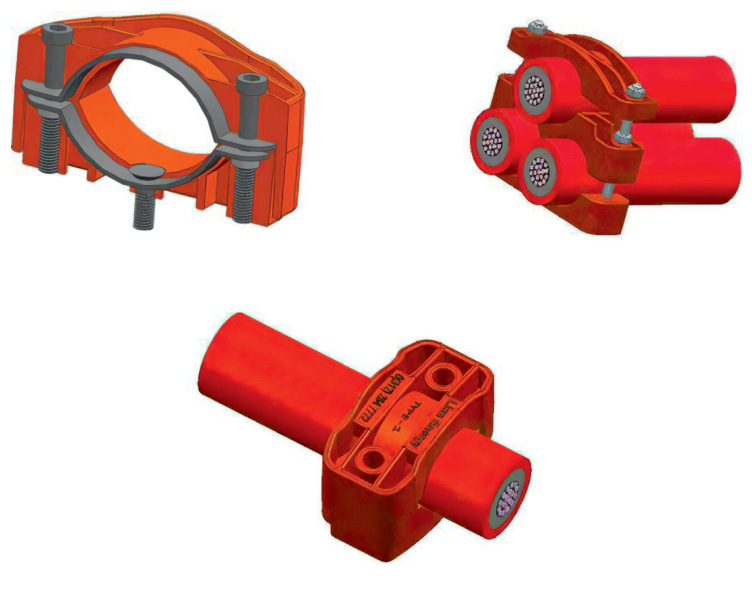

Polyamide, which is a polymer material, has a wide range of industrial applications and is extremely resistant to solvents (acids and bases) and has high insulation properties. It is also heat-resistant and resistant to impact. With its UV additives, it is an anti-magnetic product that does not show any physical reaction to sunlight.

In the energy sector, for the safe operation of HV/LV cables in both indoor and outdoor environments, they are installed with certain distances between them, either laid flat or in cable trays. For mounting on a raised platform, a lOmm rod is used as a mounting connection element. This installation method is practical and economical. It can be used for all cables up to lx400mm XLPE

Aluminum and Copper Power Cables, Bare Stranded Conductors, Alpek Cables and Convered Conductors
